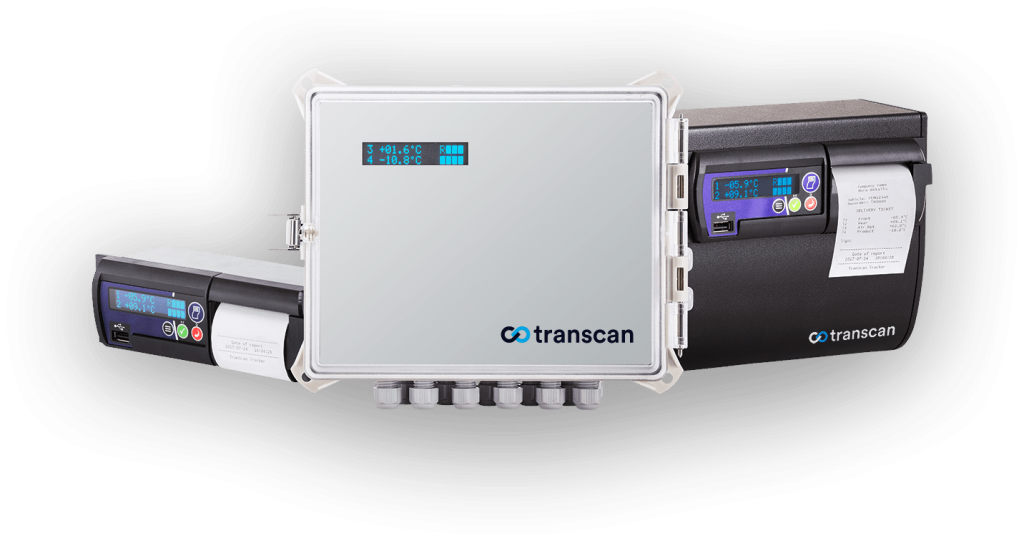

TranScan® Temperature Dataloggers

Southern Sales & Services are proud to be distributors for Transcan data loggers, the market leaders now for 20 years and counting. Transcan® Temperature Recorders have serviced the cold storage market and the refrigerated transport industry for major brands like Thermoking. The Transcan2® is no exception. Providing clear, precise and meaningful temperature data to protect your products integrity when it matters most.

  • Individual temperature sensor inputs for complete temperature monitoring visibility
  • Standard temperature datalogger alarm sets
  • Unlimited temperature datalogger status inputs including door, defrost, fridge power, and a user defined
  • Integral printer
  • Delivery tickets, journey tickets and multi-day printouts
  • Numerical and graphical journey ticket printout modes
  • Each TranScan® temperature datalogger supports 8 languages
  • 9 – 36v DC power supply
  • Approved to EU standard EN12830, regulations 37/2005 (Frozen Food) and 850/2004 (HACCP) DEFRA EC No1/2005 approved

Transcan® 2 – Data Loggers

For reliable cost effective monitoring and recording choose Transcan 2 ADR, the industry standard Temperature Recorder incorporating the unique ADR (Automatic Daily Recording) System. The TranScan 2 now includes a host of features designed to make the easiest to use temperature recorder EVEN EASIER.

  • TranScan® 2 – Introduction

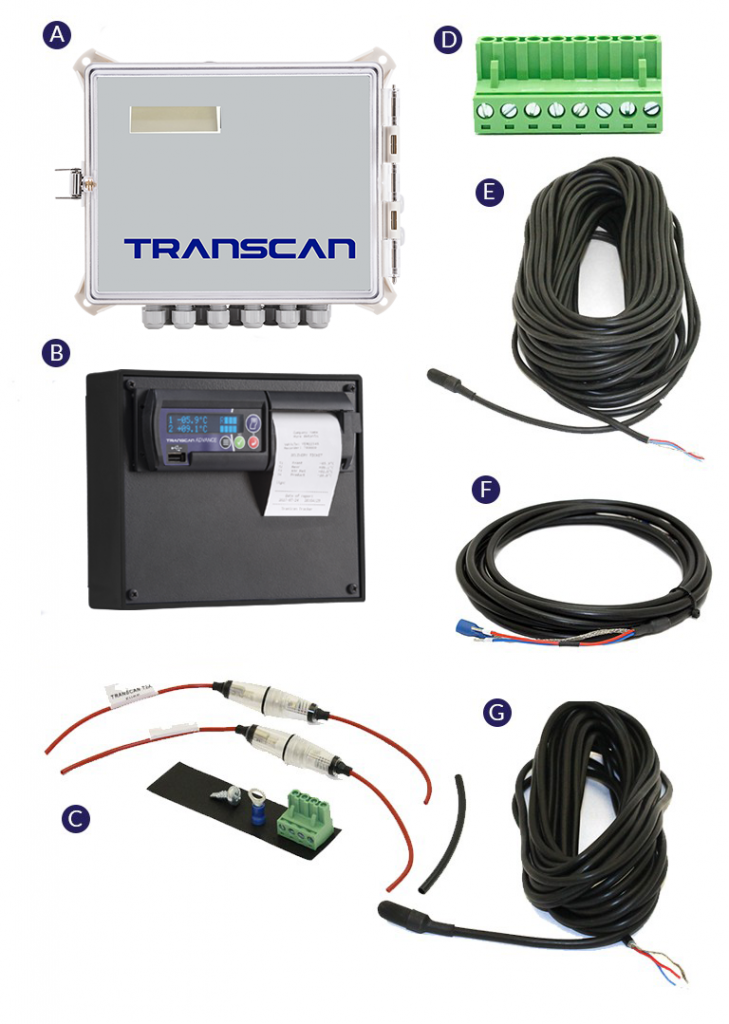

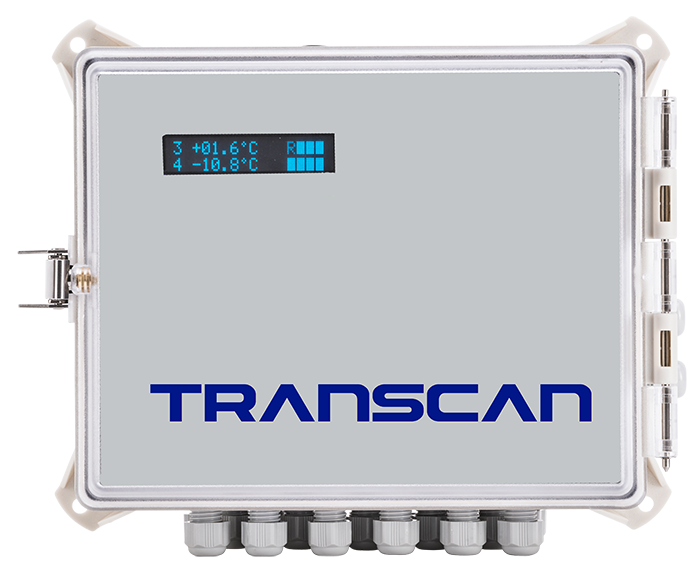

  • TranScan® 2 – Trailer

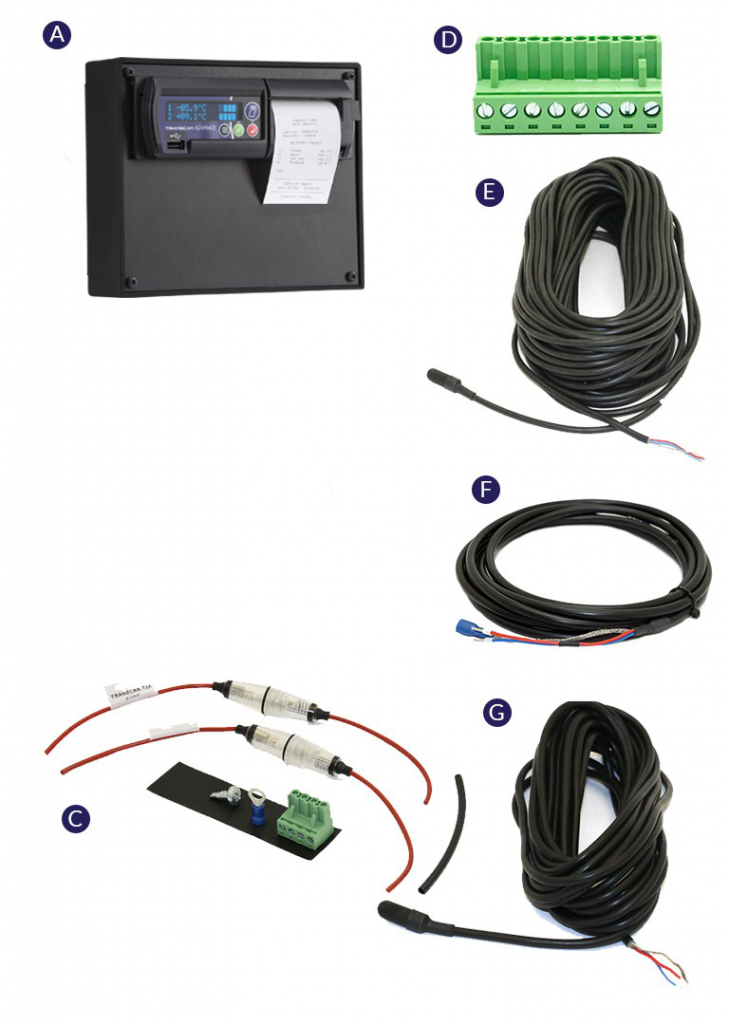

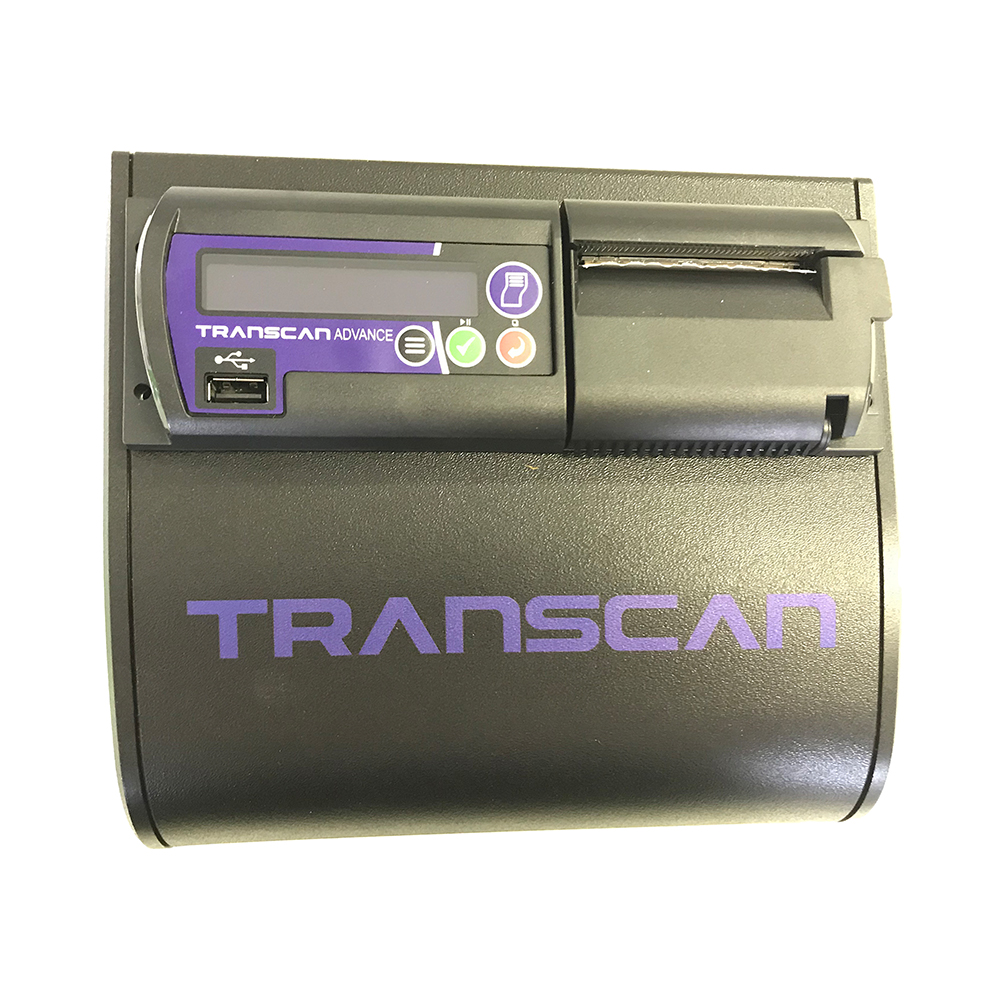

  • TranScan® 2 – Cab

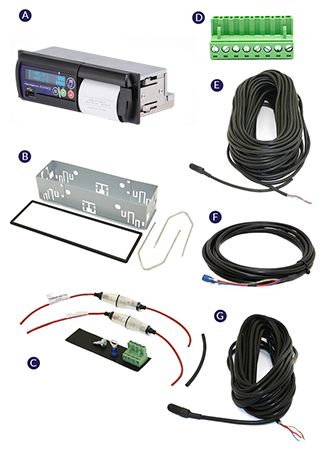

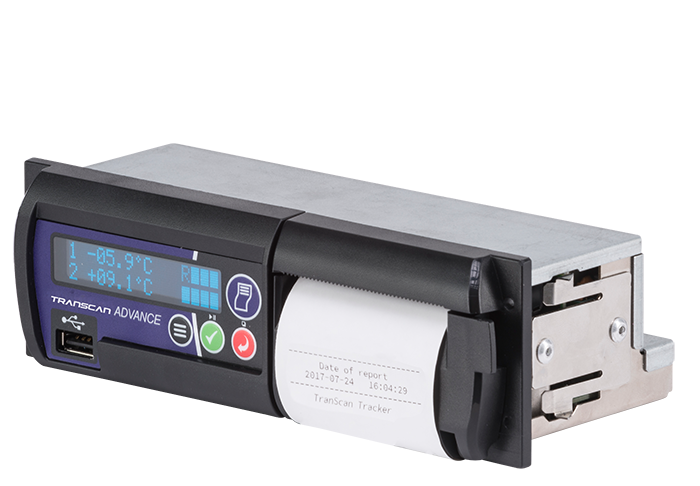

  • TranScan® 2 – Rigid

Transcan® 2 – Introduction

TranScan 2 recorders have been type tested and approved against the EN 12830 norm for vehicle temperature recording systems and are certified as a Class 1 device.

This is the highest classification of performance that can be awarded. Additionally TranScan 2 recorders have met the requirements of the German interpretation of the EEC directive 92/1/EWG and have received certification by the German Test House TUV Bau-und Betriebstechnik.

TranScan 2 recorders include the facility to select the operating language (English, French, German, Spanish, Italian Portuguese, Polish or Dutch) with a unique in-built HELP system, this makes Transcan the only multi language self documenting temperature recorder.

TranScan 2 supports up to 4 separate temperature inputs from precision NTC thermistor sensors. Each input is characterised for operation between -45C and + 50C. You can also add up to 4 switch inputs such as door switches, defrost, fridge on/off or alarms.

Sensors are available with cable lengths up to 18 metres and are fully interchangeable. To comply with the requirements of the UK Food Hygiene Amendment Regulations each Transcan thermistor sensor has a dampened thermal response (T90 of approximately 8 minutes).

Optional product probe temperature sensors are available in two formats. An Insertion Probe which is rounded with a semi-pointed end, normally used for direct insertion into products such as meat carcasses, and a Between Pack Probe which is flattened to allow introduction between boxes or cartons of food.

Product probes have a faster response time than air temperature sensors (T90 of approximately 1 minutes) and are advantageous for operators of multidrop delivery vehicles where air temperature sensing alone may not provide a meaningful indication of product temperature.

Transcan 2, the ultimate instrument to upgrade for connectivity to a host of remote satellite monitoring applications such as the web based Seven Eye System.

For reliable cost effective monitoring and recording choose Transcan 2 ADR, the industry standard Temperature Recorder incorporating the unique ADR (Automatic Daily Recording) System. The TranScan 2 now includes a host of features designed to make the easiest to use temperature recorder EVEN EASIER.

Up to 4 Sensors Included
Integral Printer Included
Up to 4 Switches Included
Temperature Display Included
512Kb Internal Memory Included
Exterior Mount Included
Alarm Capability Included

For reliable cost effective monitoring and recording choose Transcan 2 ADR, the industry standard Temperature Recorder incorporating the unique ADR (Automatic Daily Recording) System. The TranScan 2 now includes a host of features designed to make the easiest to use temperature recorder EVEN EASIER.

Up to 4 Sensors Included
Integral Printer Included
Up to 4 Switches Included
Temperature Display Included
512Kb Internal Memory Included
Exterior Mount Included
Alarm Capability Included

For reliable cost effective monitoring and recording choose Transcan 2 ADR, the industry standard Temperature Recorder incorporating the unique ADR (Automatic Daily Recording) System. The TranScan 2 now includes a host of features designed to make the easiest to use temperature recorder EVEN EASIER.

Up to 4 Sensors Included
Integral Printer Included
Up to 4 Switches Included
Temperature Display Included
512Kb Internal Memory Included
DIN Size Included
Interior Mount Included
Alarm Capability Included

Transcan® Sentinel – Data Loggers

The TranScan Sentinel Trailer Refrigerated Vehicle Temperature Recorder has been designed to meet the growing demand for a simpler easier to use and lower cost recording system.

  • TranScan® Sentinel – Introduction
  • TranScan® Sentinel – Trailer
  • TranScan® Sentinel – Cab
  • TranScan® 2 – Rigid

Transcan® Sentinel – Introduction

Approved to European Standard EN 12830 Class 1 meeting the objectives of directives 92/1/EEC and 93/43/EEC.

TranScan Sentinel recorders include the facility to select the operating language (English, French, German, Spanish, Italian Portuguese or Dutch) with a unique in-built HELP system, this makes Transcan the only multi language self documenting temperature recorder.

TranScan Sentinel supports up to 2 separate temperature inputs from precision NTC thermistor sensors and a single on/off door switch.

To comply with the requirements of the UK Food Hygiene Amendment Regulations each thermistor sensor has a dampend thermal response (T90 of approximately 8 minutes). Optional product probe temperature sensors are available in two formats.

An ‘Insertion Probe’ which is rounded with a semi-pointed end, normally used for direct insertion into products such as meat carcasses, and a ‘Between Pack Probe’ which is flattened to allow introduction between boxes or cartons of food.

Product probes have a faster response time than air temperature sensors (T90 of approximately 1 minutes) and are advantageous for operators of multidrop delivery vehicles where air temperature sensing alone may not provide a meaningful indication of product temperature.

It is also possible to select a display symbol representative of the event being monitored. The interface between the event to be monitored and the TranScan recorder is via a relay or supplied solid state switch or any other appropriate device which provides a volt free contact.

The TranScan Sentinel clock includes automatic adjustment for winter/summer time.

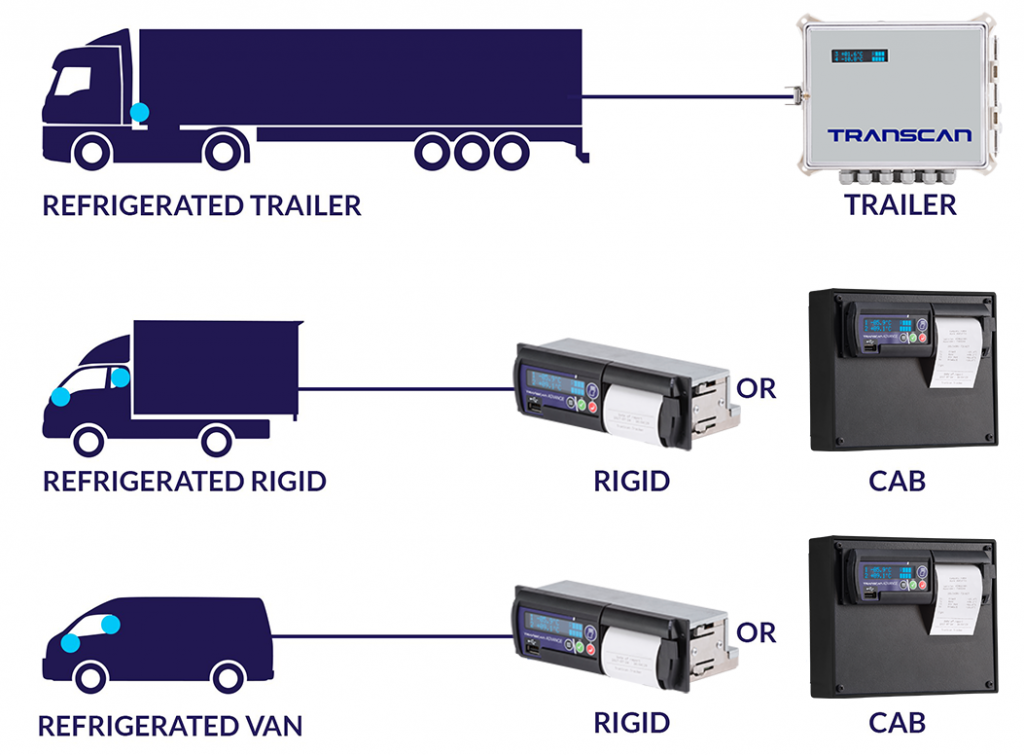

For external installation on trailers, choose the TranScan Sentinel ‘T’ in its compact weatherproof enclosure. For in-cab installation in trucks choose the TranScan Sentinel ‘R’ which is designed to fit a standard ISO car radio cut out, alternatively small panel vans when a spare car radio cut out is not normally available choose the TranScan Sentinel ‘C’ in its low profile enclosure ideal for mounting on an internal bulkhead.

TranScan Sentinel now includes a user selectable recording interval which is factory preset to 15 minutes but can alternatively be set to 5 or 30 minutes as required.

The TranScan data memory scrolls when full, with the newest data overwriting the oldest. Data retained in memory may be printed out as individual days or groups of days as required.

TranScan® Sentinel – Trailer (External)

The TranScan Sentinel Trailer Refrigerated Vehicle Temperature Recorder has been designed to meet the growing demand for a simpler easier to use and lower cost recording system.

Up to 2 Sensors Included
Integral Printer Included
1 Switch Included
Temperature Display Included
128Kb Internal Memory Included
Exterior Mount Included

TranScan® Sentinel – Cab

The TranScan Sentinel Trailer Refrigerated Vehicle Temperature Recorder has been designed to meet the growing demand for a simpler easier to use and lower cost recording system.

Up to 2 Sensors Included
Integral Printer Included
1 Switch Included
Temperature Display Included
128Kb Internal Memory Included
Interior Mount Included

TranScan® Sentinel – Rigid

The TranScan Sentinel Trailer Refrigerated Vehicle Temperature Recorder has been designed to meet the growing demand for a simpler easier to use and lower cost recording system.

Up to 2 Sensors Included
Integral Printer Included
1 Switch Included
Temperature Display Included
128Kb Internal Memory Included
Interior Mount Included
DIN Size Included

TranScan® TSxpress Data Management Software

TSxpress is a fully integrated Windows based software suite designed to manage the transfer of data from Seven TranScan temperature recorders and provide comprehensive and detailed data analysis and management reporting facilities.

TranScan® Software Download

Features include:

  • Integrated download from all types of TranScan® recorders or via Data Collection Unit (DCU)
  • Automatic Download from TranScan® Automatic Data Gatherer (ADG)
  • Smooth scrolling display of recorded temperature and status (on/off) input data
  • Graphical or numeric list presentation of data
  • Powerful exception reporting tools
  • Comprehensive HTML Help facilities
  • Multi language operation
  • Data Management Software

TranScan® Software Graph – Screen Shot 1

Supplied as a downloadable file for quick and simple installation, TSxpress Data Management Software provides a host of tools to allow users of TranScan® temperature recorders to store and analyse their data.

Use the explorer type recorder manager to quickly choose a vehicle from your fleet and review the data available. Select data from the list presented or by highlighting a date or dates on the calendar. Click “Data” to display information for the chosen time period as a graph or numeric list.

TranScan® Software Graph – Screen Shot 2

Use the simple Rules Wizard to set your own rules for a single vehicle or groups of vehicles. When data is transferred to the PC it is automatically compared with your rules and any exceptions are immediately highlighted in red.

TSxpress exception reporting allows you to decide your own criteria, quickly identify problems and consider corrective action without the need to study endless lists of data from all your fleet.

TranScan® Software Graph – Screen Shot 3

The minimum PC specification required to operate TSxpress software is as follows:

  • Pentium processor
  • Windows NT/2000/XP/7 32/64 bit operating system
  • 128Mb-512Mb RAM minimum (according to operating system)
  • 1GB hard drive
  • Internet Connection or CD-ROM drive
  • 800 x 600 resolution colour monitor (minimum) 1024 x 768 preferred
  • Serial port required for download from TranScan®DCU or ADG
