SPAL Automotive Fans and Blowers

Southern Sales & Services are the UK’s largest distributor of SPAL Automotive products for the south of England. We provide customers the complete available range of SPAL axial fans, single and double blowers, high performance brushless fans and blowers both in 12V / 24V and numerous accessories.

This wide range of products gives the opportunity of choosing among different diameters with high performance, high efficiency and low noise.

For more detailed information on the product line, please click on the thumbnails shown below. If you need help with a SPAL product you require for a specific application then please do not hesitate to contact our sales team who will assist your with your fan selection. You can contact us by phone or by using the quick contact form at the bottom of the page.

Solutions for Industries

To help identify the most commonly requested service parts for SPAL replacements, below are several quick start guides. They offer a helpful visual reference, listing the top products for the sector and include vital technical details.

BUSES & COACHES

SPAL’s high performance fans and blowers have a range of applications for buses & coaches:

  • Screen demisting
  • Cabin heating
  • Air conditioning
  • Engine cooling
  • WC extractor fans

CONSTRUCTION

SPAL fans and blowers provide a complete range of application options for Construction plant & equipment:

  • Cabin heating
  • Air conditioning
  • Engine cooling
  • Remote Condenser Fan
  • Auxiliary Oil Cooling

AGRICULTURE

SPAL offers a full range of high performance fans and blowers for Agricultural equipment:

  • Cabin heating
  • Air conditioning
  • Engine and Condenser Cooling
  • Engine Bay Ventilation
  • Auxiliary Oil Cooling

STATIONARY APPLICATIONS

SPAL offers a full range of high performance fans and blowers for stationary equipment and applications:

  • Oil cooling
  • Auxiliary Oil Cooling

Spal – Brushed Axial Fans

SPAL provides customers with a wide range of high performance DC & EC axial fans and blowers. Besides standard solutions, SPAL Automotive can provide custom designed shrouds and fans for specialist applications. Their wide range of products gives a the ultimate choice between performance and efficiency with low noise.

SPAL Brushed Axial fans provide longer life, superior performance and lower cost over time compared to standard market products.

  • DC Motor Fan for extreme operating conditions
  • Option of 12V and 24V
  • Sealed, waterproof and dustproof to IP68
  • Longer life, superior performance, excellent value for money
  • Standard Product upgrades available to deliver up to 15,000+ hours of life

AXIAL FAN Degrees of IP Protection

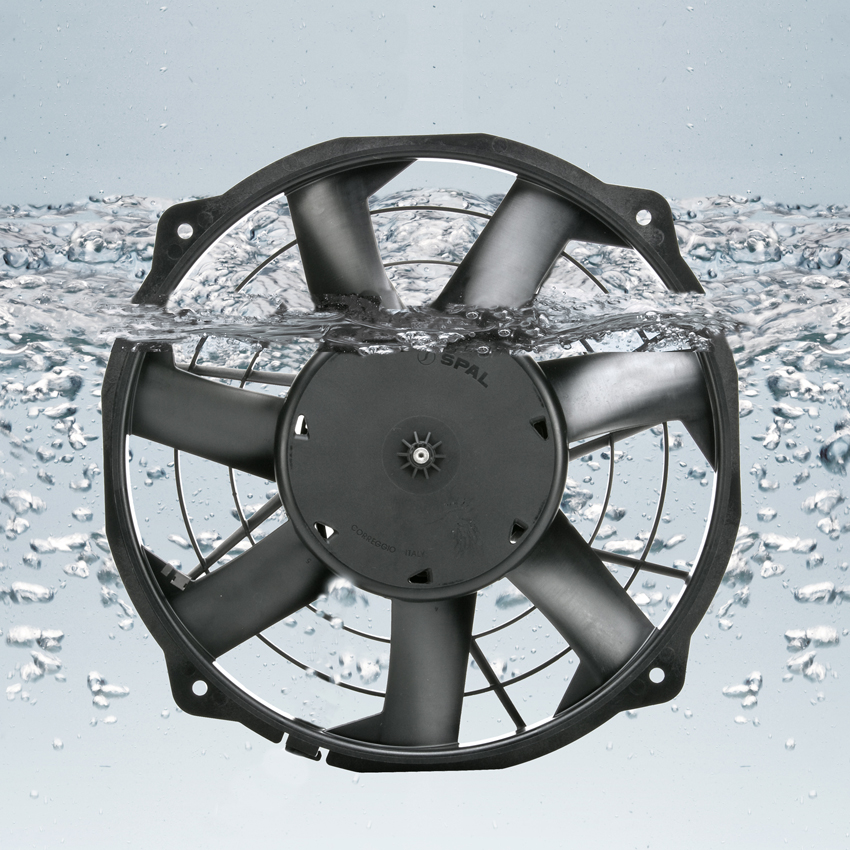

In Spal Axial Fan Modules the number which follows “IP” indicates the degree of protection against external agents: the first digit stands for protection against ingress of dust or other object (the maximum grade is 6) and the second one stands for protection against ingress of liquids (the max. grade is 8). Therefore IP68 protection offers the highest stability, durability and lifelong performance for motors used in extreme working conditions.

All IP68 certified SPAL motorsare WP (Water Proof) which means they are completely sealed and therefore protected against ingress of solid and liquid agents.

High Performance Axial Fans: The LL & VLL Motor

SPAL motors provide longer life, superior performance and lower cost over time when compared to standard versions.
The product life of our motors goes from 5.000 up to 20.000 or more hours according to the motor and fan configuration (*).
Most of the standard fan configurations shown in the catalogue are long life: from 5.000 to 10.000 hours

Dc Axial Fan Module Upgrades

LL = Longer Life motors
  • Product life increased by approx. + 100% over standard version shown in the catalogue, usually 10.000 hours or more.
  • Excellent reliability and lifelong performances also when used in extreme operating conditions.
VLL = Very Long Life
  • Product life increased by approx. + 300% over standard version shown in the catalogue, usually 20.000 hours or more.
  • Excellent reliability and lifelong performances also when used in extreme operating conditions.

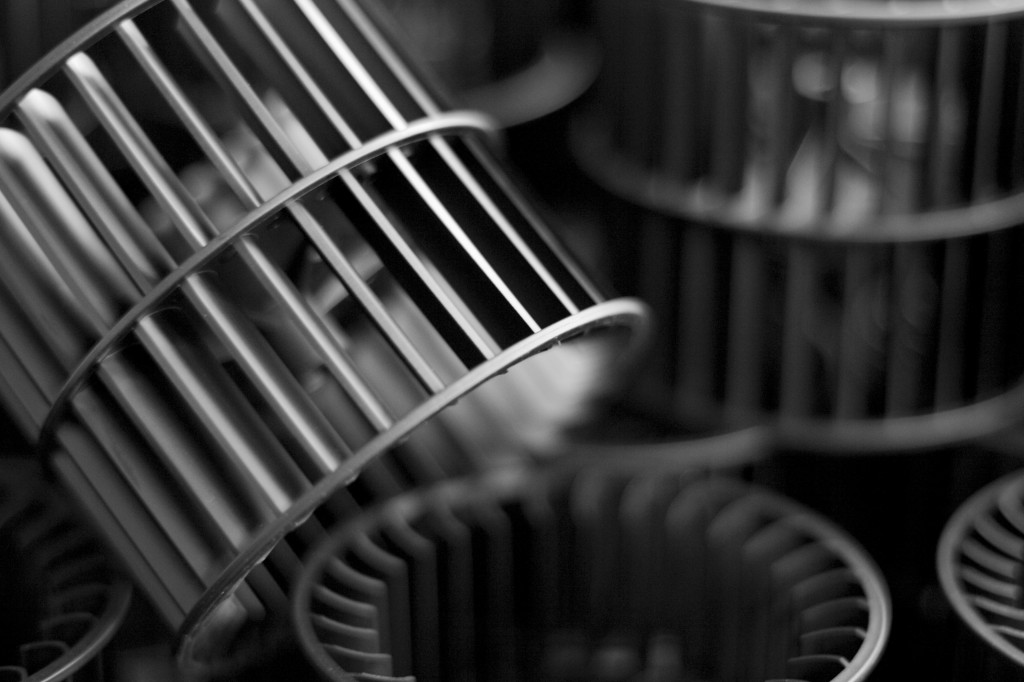

Spal – Brushed Centrifugal Blowers

Centrifugal blower moduleCentrifugal blowers are available with single and double impellers, 12V and 24V, with brush and brushless motors full speed control, high performance, extreme low noise and long life: those features and their wide range of different designs meet any requirement in developing a cooling and ventilation systems.

The VLL centrifugal blower module provides longer life, superior performance and lower cost over time when compared to standard versions.

Most of the centrifugal blowers shown in the catalogue are Long Life and have an indicative lifetime from 5.000 hours up to 12.000 hours (*). On selected models there are available the VLL versions (Very Long Life) which can reach lifetime up to 20.000 hours (*), three times higher than the previous standard blower series.

  • For ventilation or cooling systems
  • Option of 12V and 24V
  • Single or multi speed
  • Available with single and double impellers
  • High performance, extreme low noise and long life
  • Sealed, waterproof and dustproof to IP68
  • Product upgrades available on selected models to deliver up to 15,000 hours of life
SINGLE 12v RANGE
DOUBLE 12v RANGE
SINGLE 24v RANGE
DOUBLE 24v RANGE

Spal – Brushless Fans and Blowers

The Spal range of brushless axial fans and brushless centrifugal blowers are the result of their extensive know-how and long-term experience gained from the mobile and industrial field. Their products meet the most demanding requests: high efficiency, low noise and consumption and most extreme work condition resistant.

  • Intelligent operation
  • Up to 1.2 Kw power output
  • Sealed Motor IP6k9k – so spark free and water/dustproof too
  • High performance
  • Optimum efficiency
  • Lower fuel costs, lower emissions
  • Lightweight, yet robust
  • Extended temperature range

Spal Brushless Motor Fans and Centrifugal Blowers

Spal’s new range of brushless motor fans and brushless centrifugal blowers is designed for applications such as energy storage cooling, engine cooling, and HVAC – including the SBL300 sealed brushless motor that features a wide range of benefits. It is sustained by the use of dedicated high-performance fan designs that optimize fluid dynamic performance. The result is high airside performance at minimum electrical load. The SBL300 is IP68 and IP6K9K compliant, and that means that the motor is fully sealed and can operate in the presence of any aggressive or hazardous substance.

The integrated power and control electronics are separated within the motor to ensure the control electronics operate at lower surface temperature levels, this greatly increasing durability and overall product reliability. The SBL300 has a double-sealed ball bearing design, guaranteeing an impressive product life of more than 30,000 hours.

Brushless Fans and Blowers Standard Fetures:

  • PWM and analog input for continuous adjustment of fan speed
  • Open collector diagnostic output
  • EMC directives: 2006/28/EC
Protection:
  • Overtemperature
  • Overcurrent
  • Mechanical overload
  • Locked rotor
  • Load dump
  • Overvoltage
  • Undervoltage
RoHS compliant:
  • Totally lead-free electronic assembly process

Brushless Fans and Blowers Advanced Features

  • High efficiency and low power consumption
  • Low Noise, Vibration and Harshness
  • Electronic controls with on-board diagnostics
  • Motor with integrated electronics
  • Battery compensation system
  • Proprietary sine-wave sensorless drive (Spal-patent)
  • Low inertia inner rotor design
  • Low weight motor
  • Higher ambient working temperature

Spal Automotive – The factory Tour
