Bock Semi-Hermetic Compressor Units

BOCK CONDENSING UNITS FOR EVERY AMBIENT TEMPERATURE

BOCK logo

Southern Sales & Services supply Bock semi-hermetic compressors units, service and replacement parts for suction gas-cooled semi-hermetic compressor units with receiver, air-cooled condenser units and Plusbox outdoor complete condensing units. Our systems offer numerous solutions for meeting state-of-the-art refrigeration technology requirements. The Bock compressors are available in a diverse range of models, sizes as well as the latest compressor electronic control technology.

Bock condensing units are the ideal solution for any cooling application and ambient temperature. The condenser units in the versions SHA for air-cooled compressors, SHG for gas-cooled compressors and the two-stage SHGZs offer maximum reliability and operate efficiently.

If you need help with your selection, then please do not hesitate to contact our technical department, and we will happily provide any assistance required.

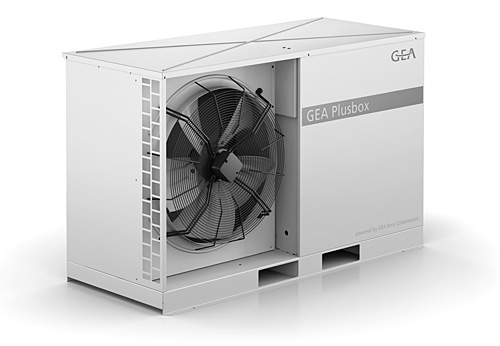

Plusbox – Modular, Flexible and Individual

Effective immediately, Bock with its Plusbox is offering for the first time a series of modularly built-up outdoor complete condenser sets based on semi-hermetic Bock compressors and Bock condensers.

Through the modular building-block principle of the Bock Plusbox, the new complete condenser set can be configured according to the individual requirements of the system builder. And so components and the scope of delivery can be adapted as needed and individual parts can be selected freely.

The Bock Plusbox is available in the design variants Basic, Plug & Play and individually expanded and is produced exclusively with the proven semi-hermetic Bock compressors. Semi-hermetic compressors can be used extremely flexibly, due to their universal refrigerant suitability, and distinguish themselves with their high reliability and long service life.

Types Displacement at 50 Hz (1450 rpm) m³/h Former types
SHG34e 18.8 22.1 27.3 33.1 SHG34e (up to DK 056)

More information about the SHG PB Plusbox (e.g. technical/performance data, drawings, spare part lists, operating limits) can be found in the compressor selection tool VAP via the following link:

VAP compressor selection SHG PB Plusbox

Video about the GEA Plusbox

The good energy efficiency and service-friendly spatial conditions are among the major advantages of the Bock Plusbox. With a considerably higher COP (coefficient of performance) than comparable condenser set from other manufacturers, the new Bock Plusbox is a pioneer with regard to energy.

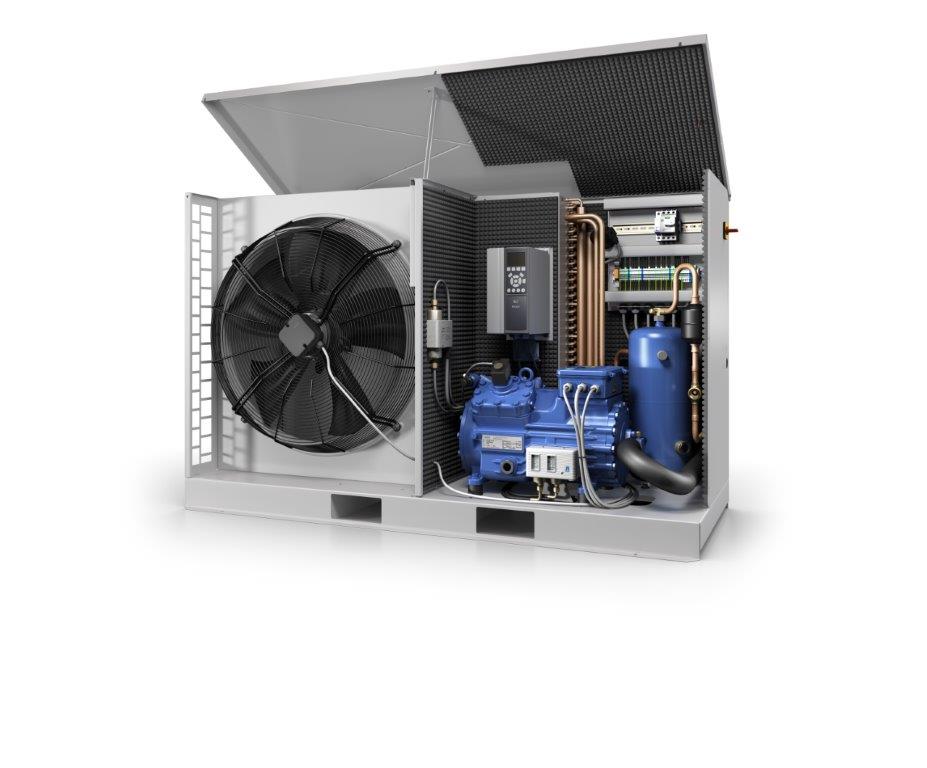

Despite its compact dimensions, the Bock Plusbox has generous spatial conditions, which makes work on the device easier. Pre-assembly and delivery of the complete Plusbox unit offers additional service-friendliness.

Among the classic application areas of the Bock Plusbox are refrigerator and freezer rooms, convenience stores and filling station shops.

Starting immediately, Technologies is offering the Bock Plusbox at first with GEA Bock compressors of size HG34e (cooling outputs of approx. 10 to 15 kW at normal cooling conditions; R404A at -10°C evaporation temperature and 32°C ambient temperature).

An expansion of the Bock Plusbox model assortment is planned.

  • SHG Condensing Units (Suction Gas-cooled)
  • SHA L Condensing Units (Air-cooled)
  • SHGZ L Condensing Units (Two-stage)

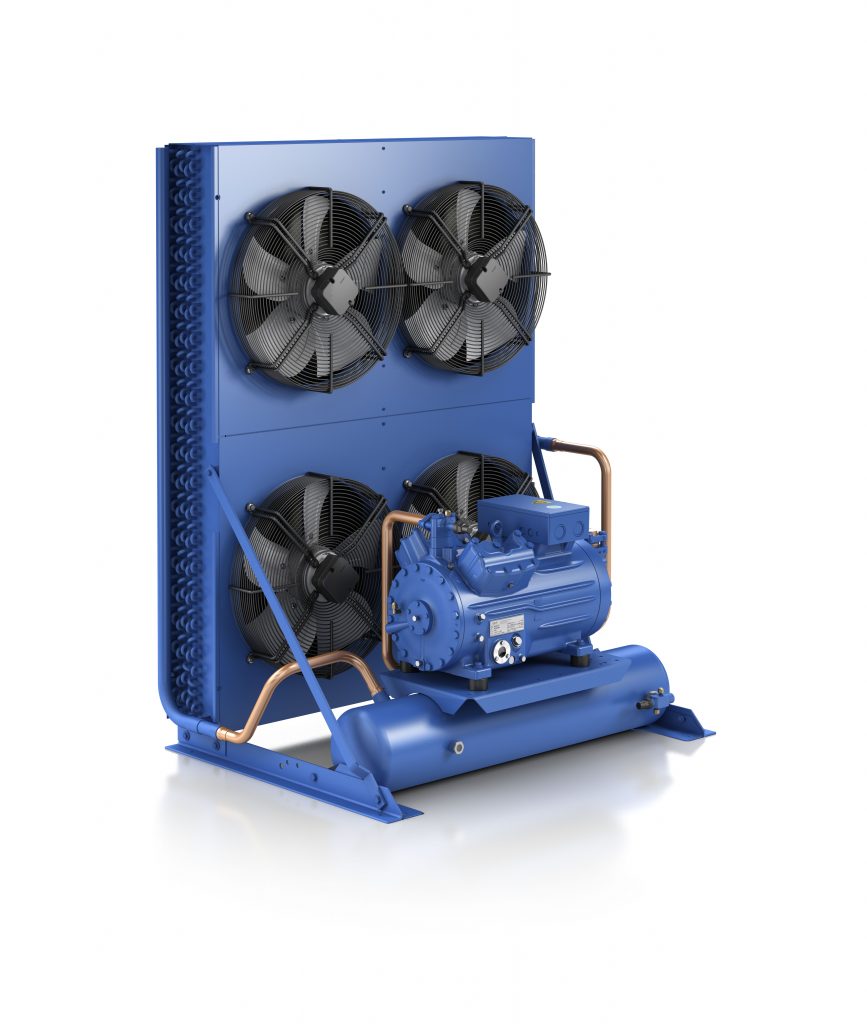

Bock SHG Condensing Units
(Suction Gas-cooled)

The latest SHG condensers from Bock are a completely revised and optimised unit series with displacement volumes from 5 to 116.5 m³/h.

The newly developed and already tested compressors HG44e, HG56e, HG66e and the further developed types HG22e and HG34e were used here. In conjunction with generously designed condensers, they are highly recommended for refrigeration applications with demanding ambient temperatures.

FEATURES
  • Efficient condensers in reliable tube fin design
  • For low and high ambient temperatures
  • Robust fans for speed control – made in Germany
  • Redundant fans double and quadruple for safely cooled goods from 27m³/h and 48 m³/h respectively
TECHNICAL

More information about the SHG condensing units (e.g. technical/performance data, drawings, spare part lists, operating limits) can be found in the compressor selection tool VAP via the following link:

VAP compressor selection SHG condensing units

BROCHURES

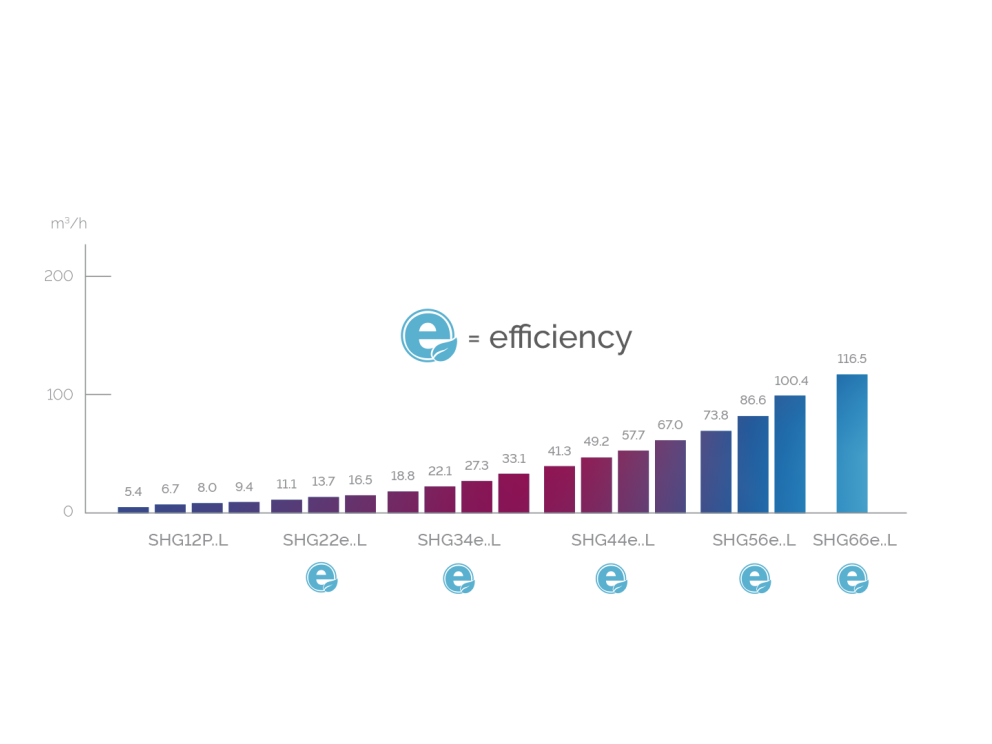

6 SIZES AND 19 DISPLACEMENTS

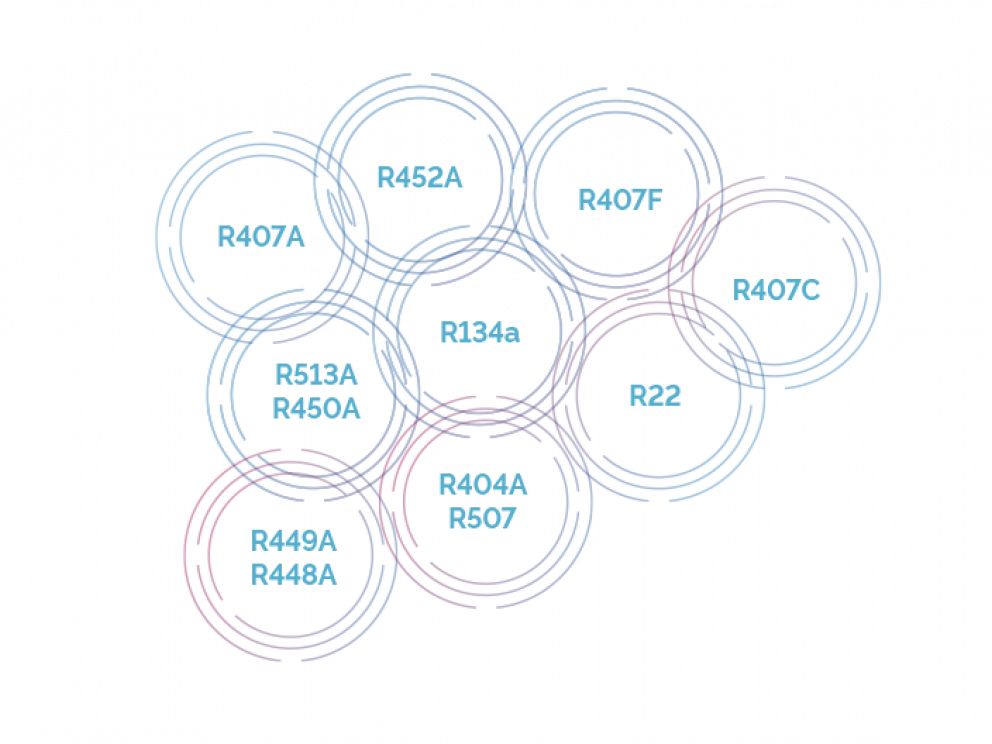

REFRIGERANT OVERVIEW

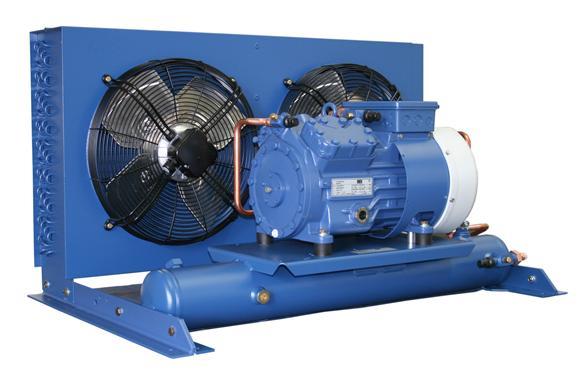

Bock SHA L Condensing Units
(Air-cooled)

Low-temperature cooling applications  place higher demands on the compressor; The refrigerant mass flow is lower at low temperatures. Thus, the refrigerant is heated disproportionately by the drive motor. Decreasing specific density and reduced efficiency are the consequences. The discharge gas and oil temperatures rise and the oil ages more quickly as a result. The lubricating properties deteriorate.

The Bock SHA unit was specially developed for the low-temperature range to solve these problems, and is an efficient semi-hermetic solution for air-cooled compressors. The result is increased performance, extended application limits and additionally an oversized condenser & fan unit for safe cooling.

FEATURES
  • Compressor works direct-intake, motor is air-cooled
  • Suction gas is not additionally heated but is drawn in directly from the compressor
  • Motor is cooled via a ventilation unit
TECHNICAL
Types Displacement at 50 Hz (1450 rpm) m³/h Former types
SHA22e 11.1 13.7 16.5 SHA22P (up to DK 056)
SHA34e 18.8 22.1 27.3 33.1 SHA34P (up to DK 056)
SHA44e 41.3 49.2 57.7 SHA4

More information about the SHA condensing units (e.g. technical/performance data, drawings, spare part lists, operating limits) can be found in the compressor selection tool VAP via the following link:

VAP compressor selection SHA condensing units

BROCHURES

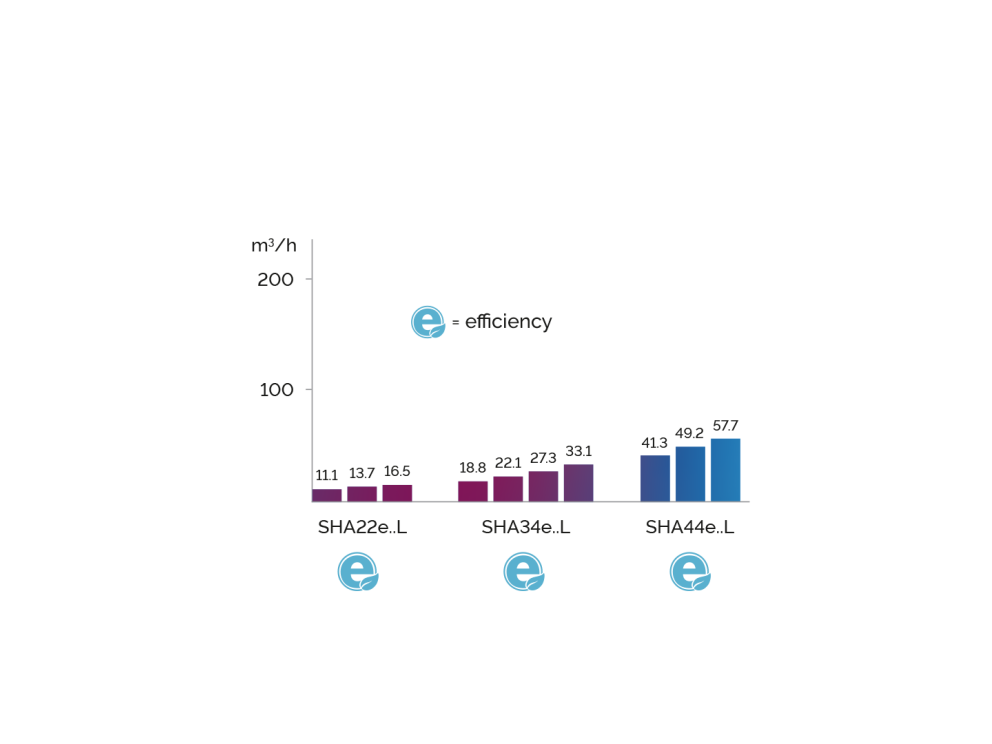

3 SIZES AND 10 DISPLACEMENTS

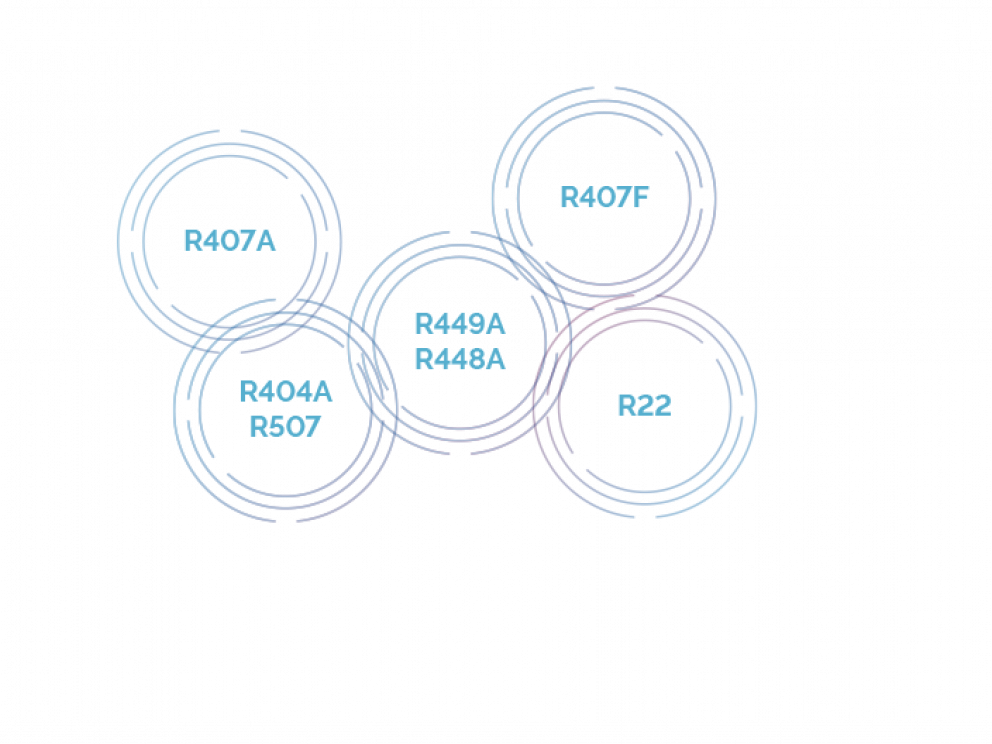

REFRIGERANT OVERVIEW

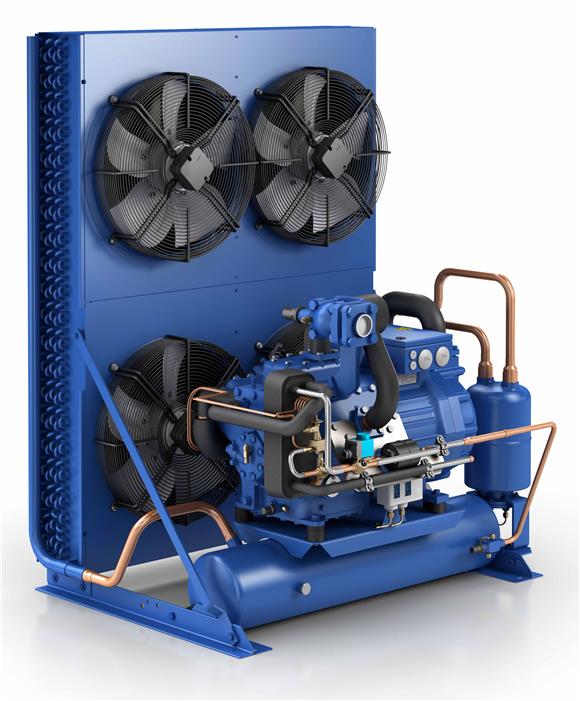

Bock SHGZ L Condensing Units
(Two-Stage)

The two-stage condensers of the Bock SHGZ series are ideally equipped for extended use low temperature cooling and are fitted with Bock HGZ7 compressors.

The two-stage compressors and the Bock “condenser-fan combination” provide sufficient power reserves. This condensing unit is ideal for demanding cooling applications such as shock freezing. The SHGZ series is already equipped with two-stage components as standard.

FEATURES
  • Liquid subcooler
  • Post-injection valve
  • Solenoid valve
  • Sight glass
  • Filter dryer
TECHNICAL
Types Displacement at 50 Hz (1450 rpm) m³/h
SHGZ7 46.9 53.8 61.2
SHGZX7 46.9 53.8 61.2

More information about the SHGZ two-stage condensing units (e.g. technical/performance data, drawings, spare part lists, operating limits) can be found in the compressor selection tool VAP via the following link:

VAP compressor selection SHGZ two-stage condensing units

BROCHURES
1 SIZE AND 3 DISPLACEMENTS

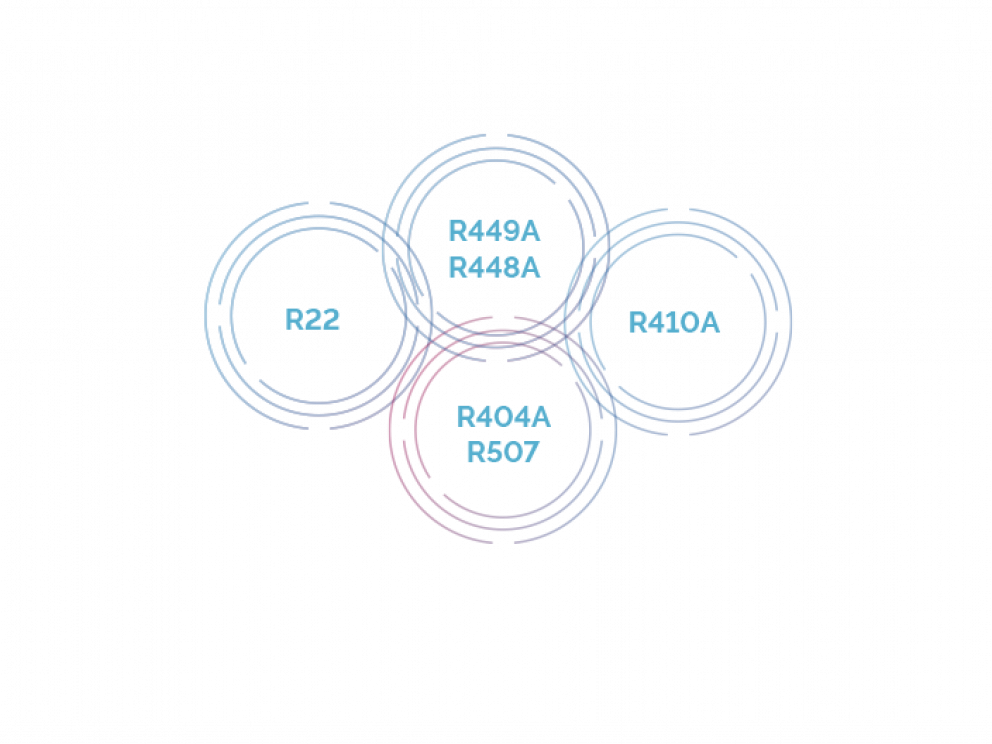

REFRIGERANT OVERVIEW
  • SHG RU Compressor Units
  • SHA RU Compressor Units (Air Cooled)

Bock SHG RU Compressor Units with Receiver

In the current series, Bock offers compressor units with receivers from 1.5 to 44 kW nominal drive power and 11 to 184 m³/h displacement.

The very latest compressors in the Pluscom generation are used in the lower and middle capacity segment.

All units are designed in a modular system.

The product has been discontinued, however we can offer a custom build service for you. Please call on 023 8026 1188 to discuss your requirements.

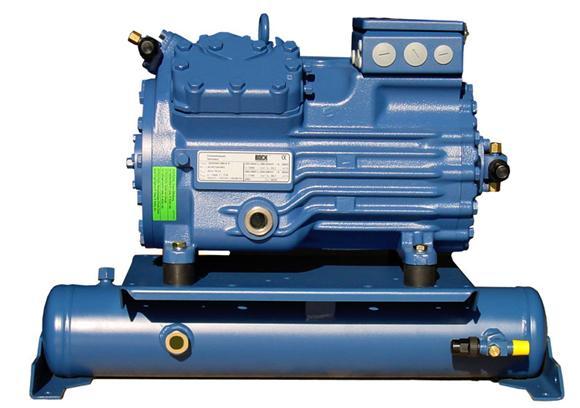

Large_SHG34P RU

Bock SHA RU Compressor Units with Receiver (Air Cooled)

In the current series, Bock offers compressor units with receivers from 1.5 to 26 kW nominal drive power and 11 to 123 m³/h displacement.

The very latest compressors in the Pluscom generation are used in the lower and middle capacity segment.

All units are designed in a modular system.

Suction gas-cooled semi-hermetic compressor units with receiver and air-cooled condenser units.

The product has been discontinued, however we can offer a custom build service for you. Please call on 023 8026 1188 to discuss your requirements.

Large_SHA4_RU

NOTE: In March 2021, BOCK was separated from the GEA Group. BOCK now trades as an independent company: BOCK Gmbh.

We continue to provide all of the BOCK products formerly produced under the GEA Group. As always we will aim to provide excellent advice and product support and can help with any enquiries you have regarding the transition or any products affected.
