GEA Bock offers greater efficiency semi-hermetic compressor series

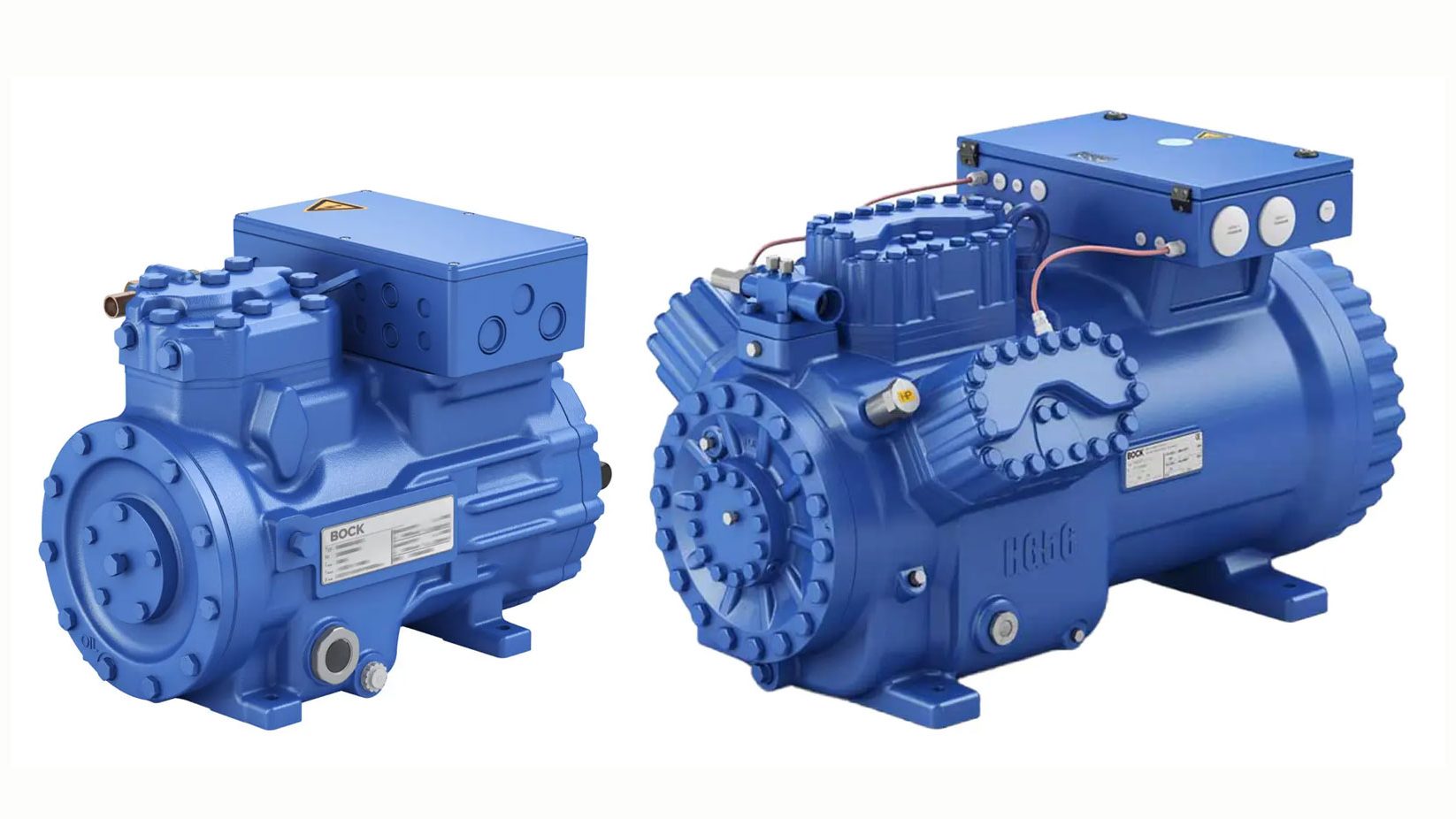

Image of GEA Bock compressors - HG44e - HG56e - HG76e - HG88e

GEA Bock has upgraded its range of semi-hermetic compressors and from 2014 will offer new, efficiency-optimized solutions for applications in refrigeration and climate control.

Experience from decades of design and construction of semi-hermetic compressors has gone into development of the new “e-series” (e = efficiency).

The new HG44e (4- cylinder) and HG88e (8-cylinder) models are already available. Beginning in fall of this year, in addition, the HG56e and HG76e models will also be on the market.

The HG76e and HG88e compressors are equipped with the newly developed GEA Bock mexxFlow valve-plate technology, which enables greater refrigeration duty while operating with less power consumption. The flow-optimized double ring fin construction  of the mexxFlow valve plate – in combination with a cylinder head especially adapted to the valve plate – have increased the efficiency of the HG76e and HG88e compressors by approx. 15 %.

GEA Refrigeration Technologies has based these four new semi-hermetic compressor series on the proven principles of GEA Bock compressors. These fundamentals include assurance of effective lubrication by an oil pump, application of exchangeable electrical motors, as well as manufacture of very solid and rugged compressors.

These new GEA Bock compressor series offer a great number of benefits over their predecessor models.

[hr_shadow]

  • The HG44e series :

The new GEA Bock HG44e compressors replace the HG4 series and are characterized by increased efficiency, greater displacement, more compact design, and a new configuration of connections. These connections conform with currently provided gas fittings, which enables replacement investment without adaptation.

The foot mounts of the new 4-cylinder compressors also conform to sector standards. The HG44e models with four model sizes cover the range of maximum displacements from 41.3 to 67.0 m³/h. This allows optimal coverage of individual performance requirements.

The GEA Bock HG44e series, in comparison to its predecessors, now offers four instead of three model sizes. In addition, the largest version, the HG44e/770-4 compressor, offers with its 67 m³/h almost 20 % more displacement than the largest HG4 model. As a result, this series of models offers the most extensive performance coverage of any brand in the sector.

[hr_shadow]

  • The HG88e series :

For several months now, GEA Bock HG88e compressors have already been on the market. The largest GEA Bock 8-cylinder for commercial refrigeration presently on the market is available in two model sizes: from 237.9 to 281.3 m³/h. This model series is impressive owing to an efficient stroke-bore ratio, optimized gas flow, highly efficient motors, as well as the same dimensions and connections as for its predecessors in the HG8 series.

In addition, efficiency enhancement of up to 15 % is possible in combination with mexxFlow valve-plate technology.

[hr_shadow]

  • The HG56e series:

Beginning in fall of this year, a total of three 6-cylinder models in the HG56e series will replace the previous GEA Bock HG5 series. These new compressors will be available with displacements of 73.8 to 100.4 m³/h. Throughout the portfolio, 6-cylinder compressors will then be offered instead of the previous HG5 4-cylinder models.

Compared to the 4-cylinder compressor models typically available on the market, the increase in number of cylinders leads to enhanced efficiency and to optimized noise-emission levels. The largest compressor, with 100.4 m³/h displacement, exceeds that of its predecessor by approx. one-fifth – and offers as a result an especially great price-performance ratio.

[hr_shadow]

  • The HG76e series:

Also from fall of 2014, the new GEA Bock HG76e series of models will arrive on the market to upgrade their predecessor models from the HG7 series. The new 6-cylinder compressors are characterized by more efficient design of the gas ducts as well as optimized electric motors from the latest generation.

In combination with mexxFlow valve-plate technology, total efficiency enhancement of up to 15 % is possible.
